Board to Board Interfaces
IMAGES
SERIES NO.
PITCH
TYPE
DWG
-

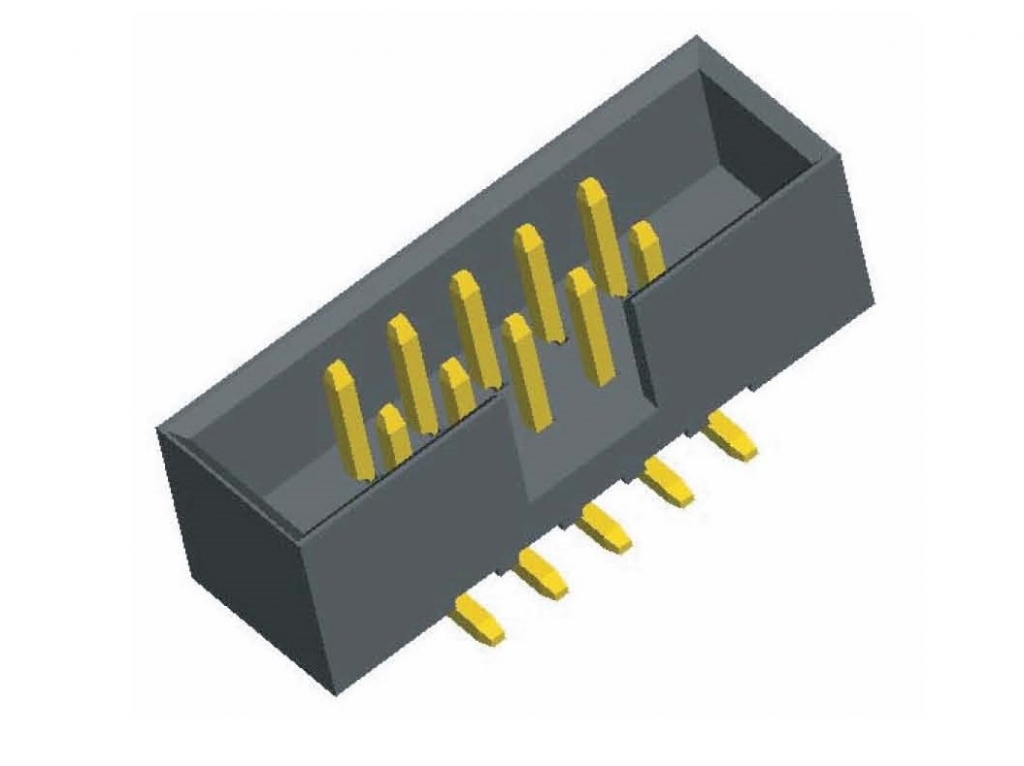

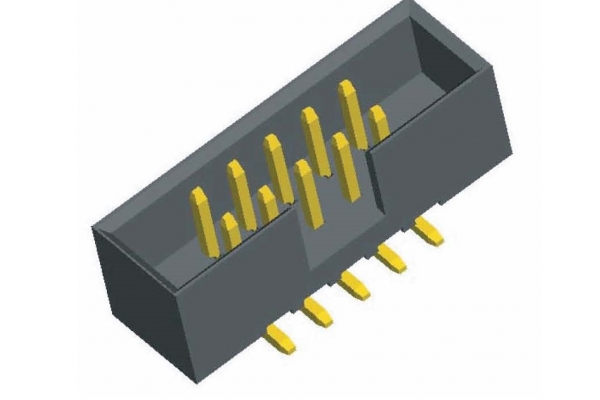

1112-VS01
1.27mm
Box Type Dual Row 10 to 100 contact For IDC SMT Type
-

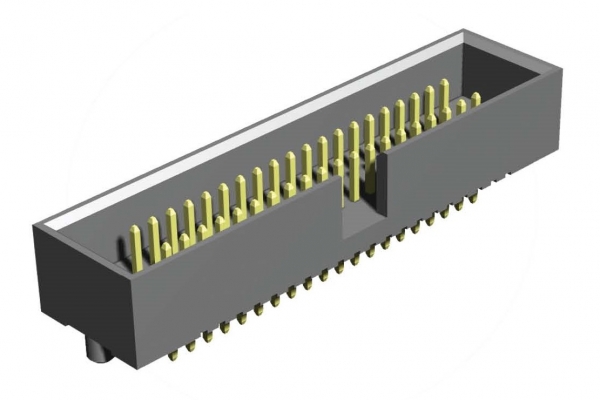

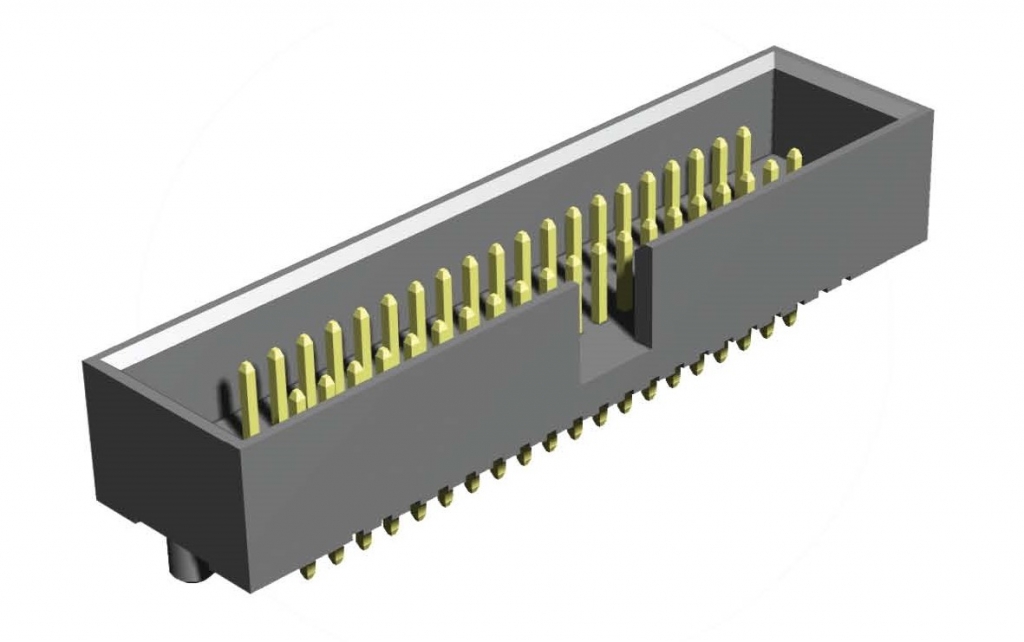

1112-VT01(RT01)
1.27mm
Pin Header Box Type Dual Row 10 to 100 contact For IDC Thru-Hole Type
-

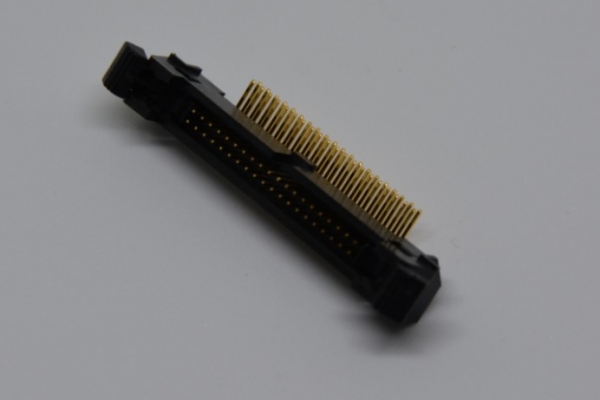

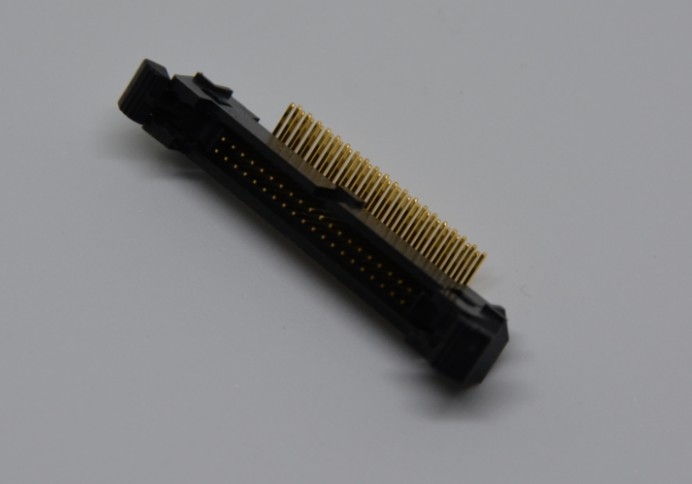

1112-RT23
1.27mm
Box Header with Ejector Right Angle Type
-

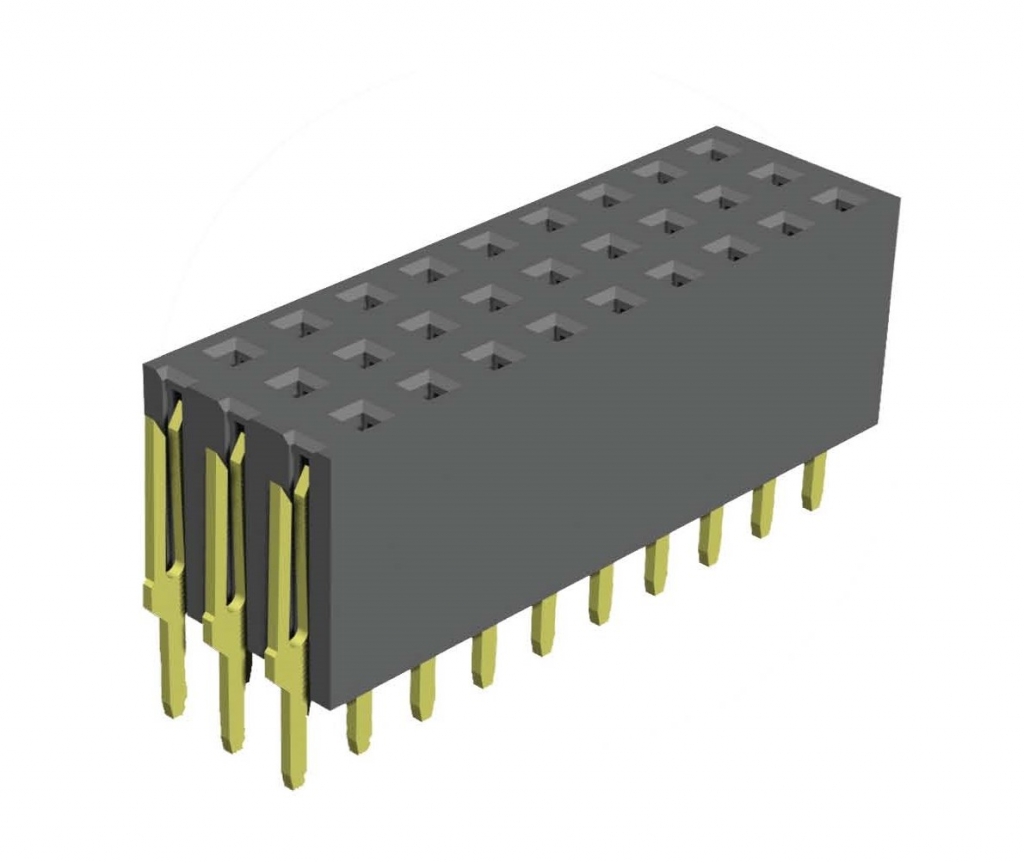

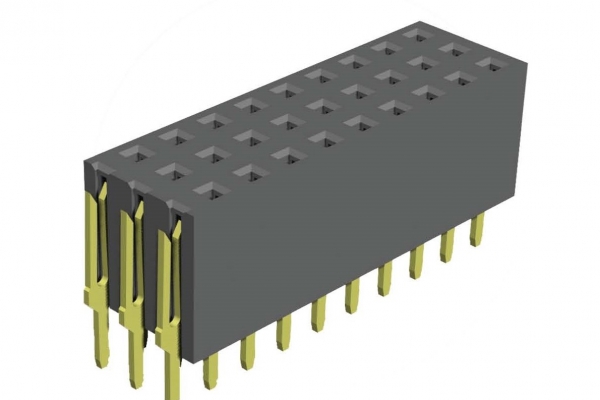

2025-VY273
2.54mm
Female Header Triple Row 06 to 120 Contacts Thru-Hole Type Profile: 8.5mm
-

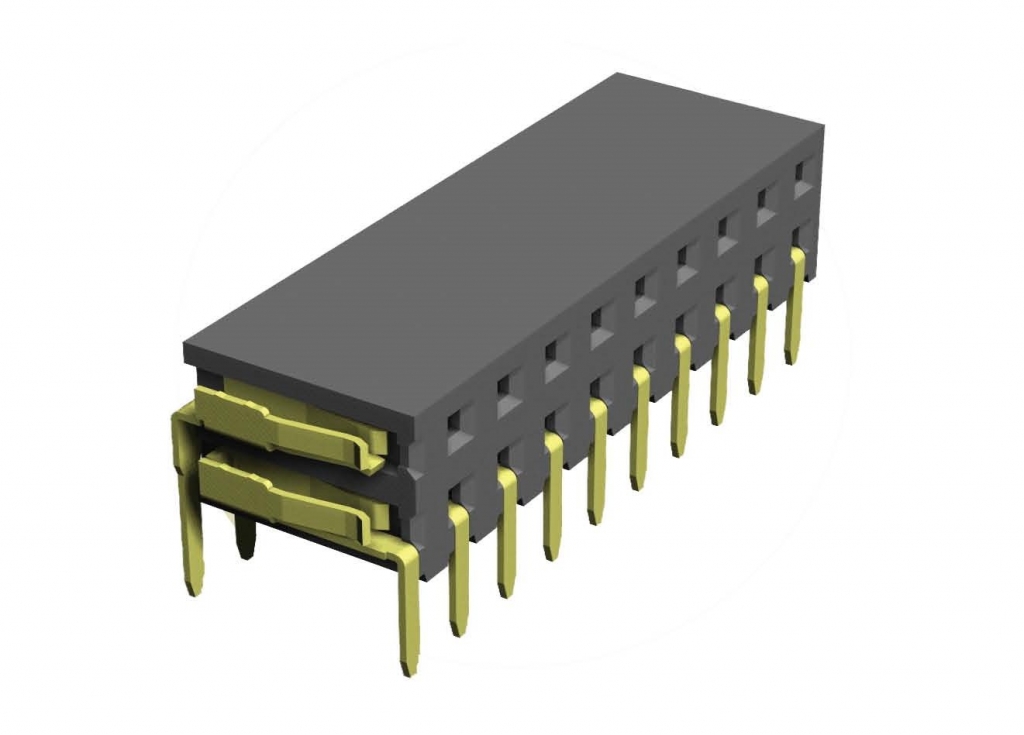

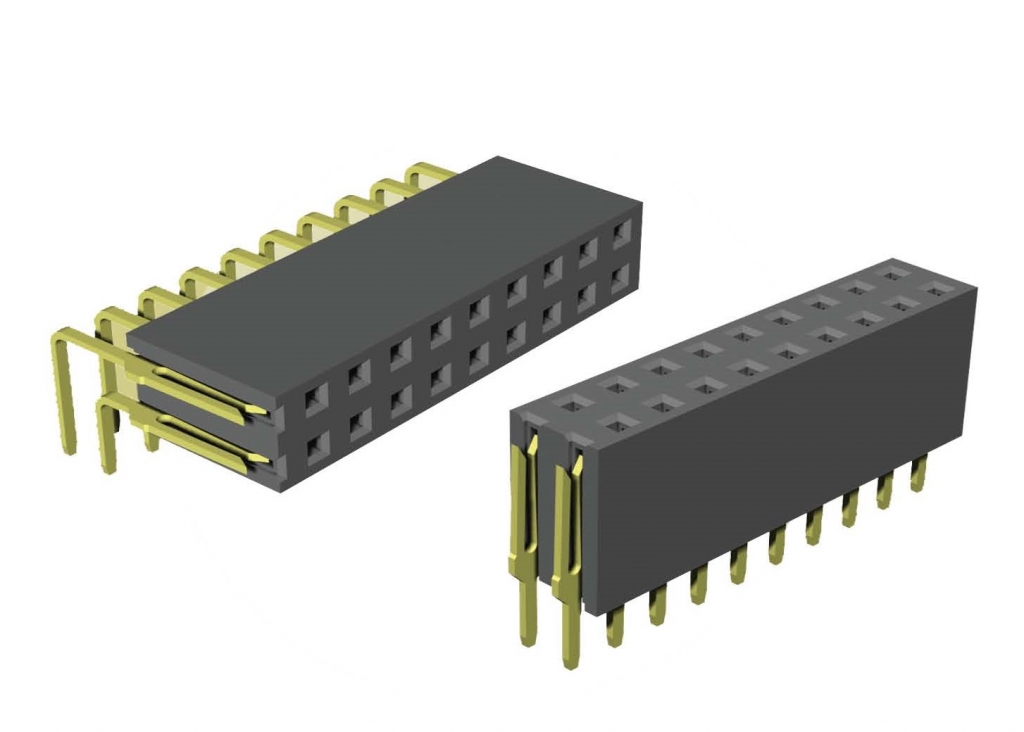

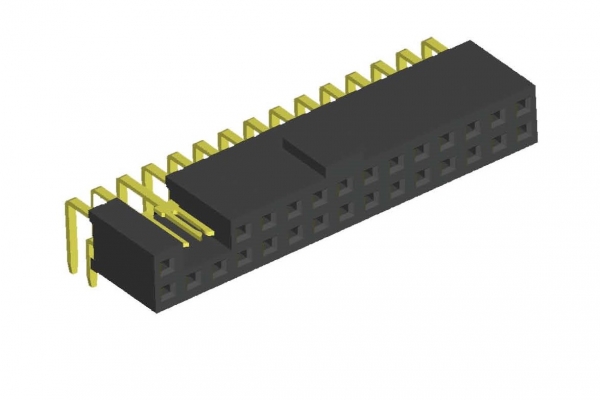

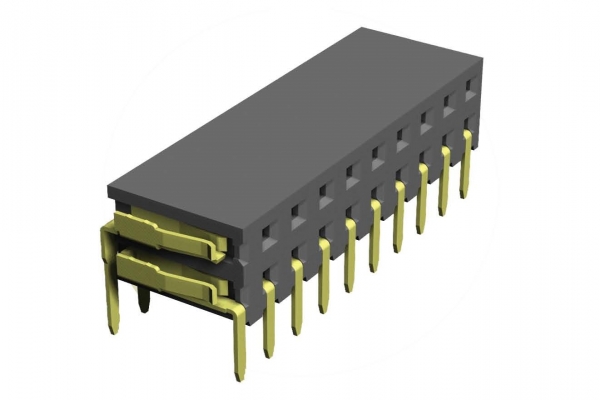

2025-TE222
2.54mm
Female Header - Side Entry Dual Row 04 to 80 Contacts Thru-Hole Type Profile: 5.95mm
-

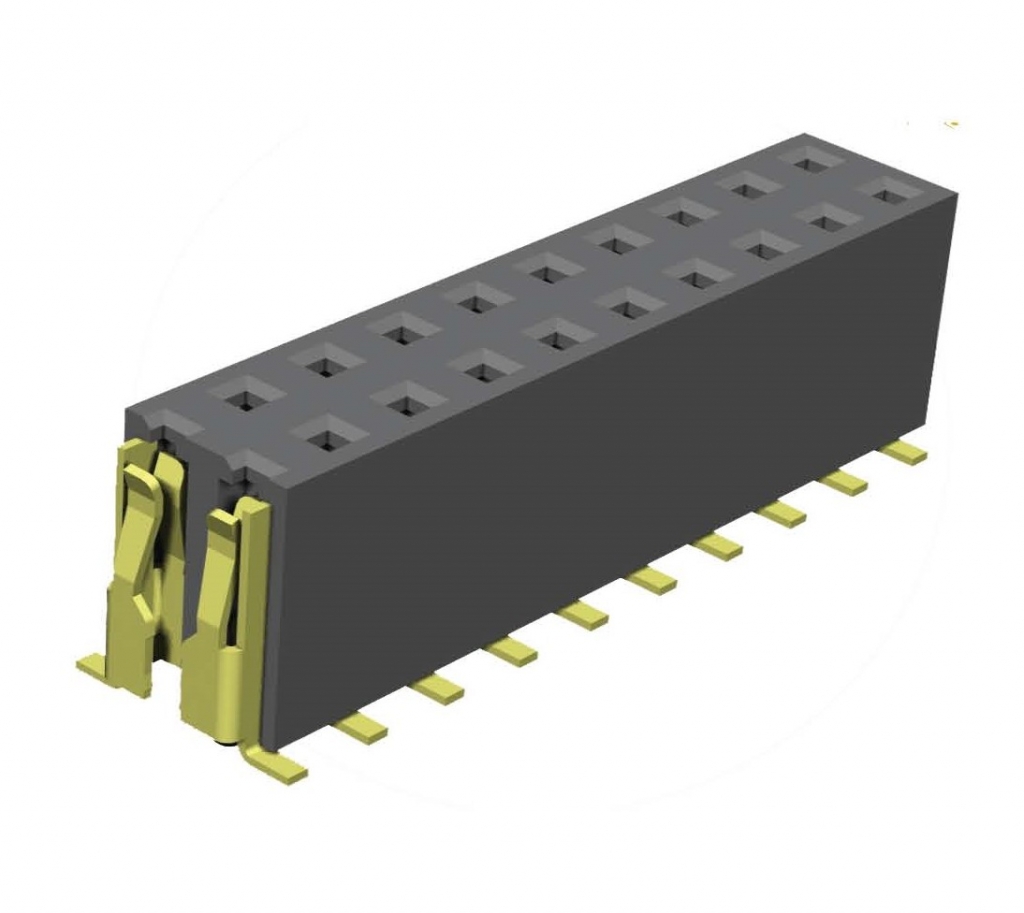

2025-VS252
2.54mm
Female Header,Dual Row 04 to 80 Contacts,SMT TYPE,Profile 7.40mm
-

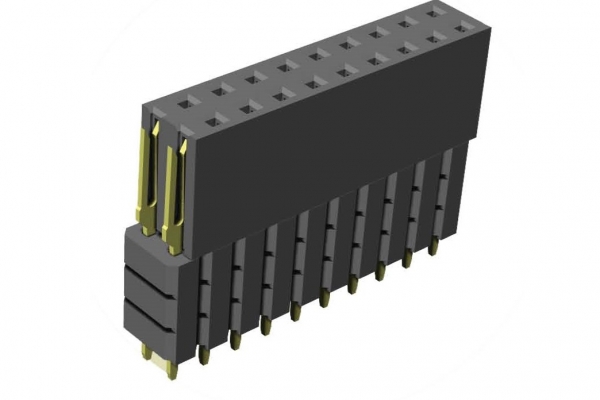

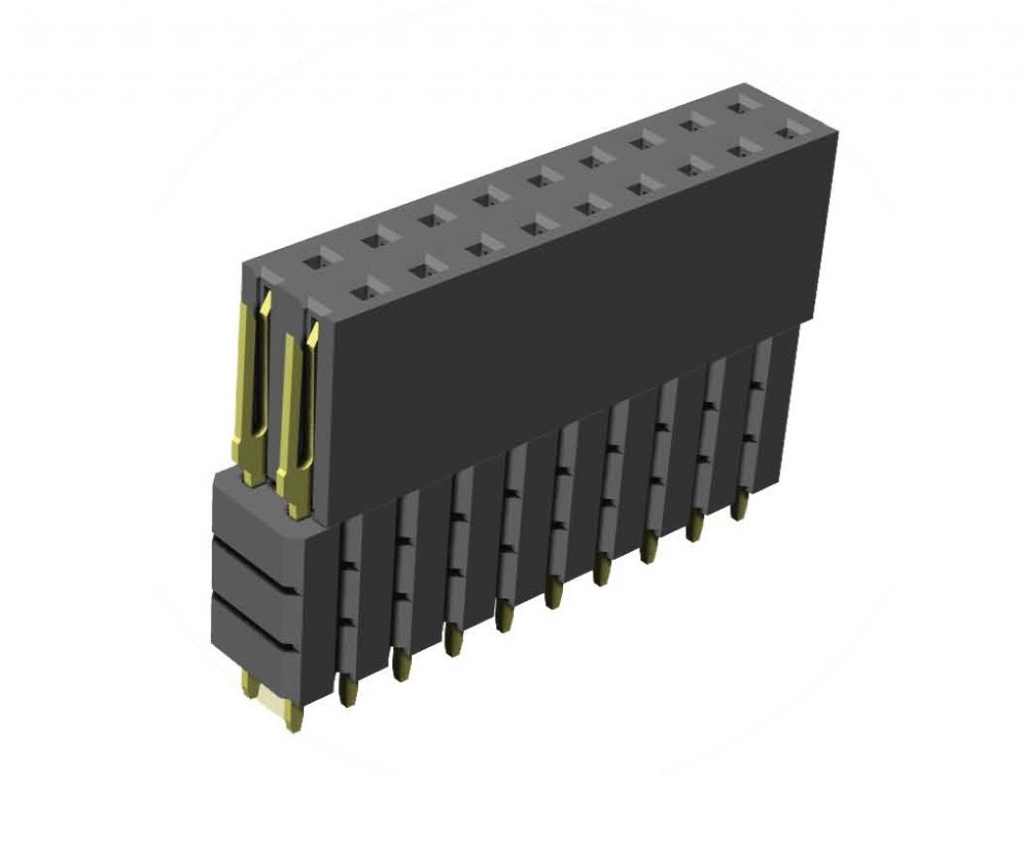

2025-VY272-1A
2.54mm
Female Header Dual Row 04 to 80 Contacts Thru-Hole Type Profile: Elevated
-

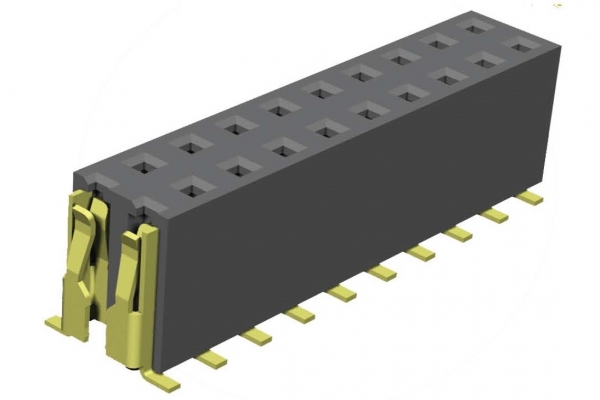

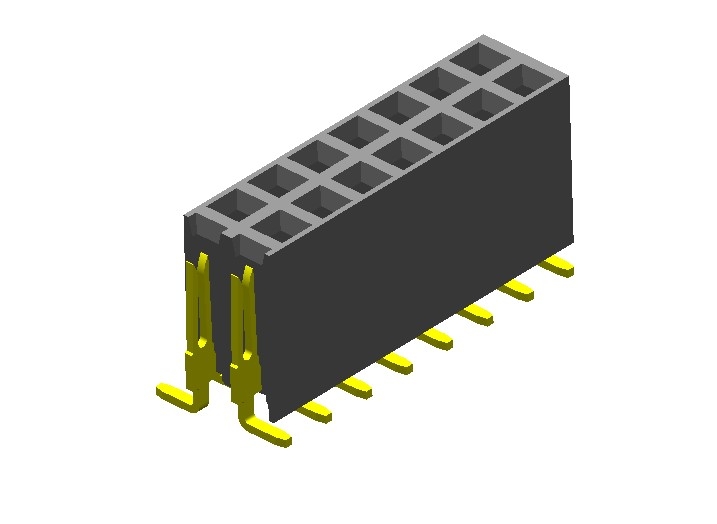

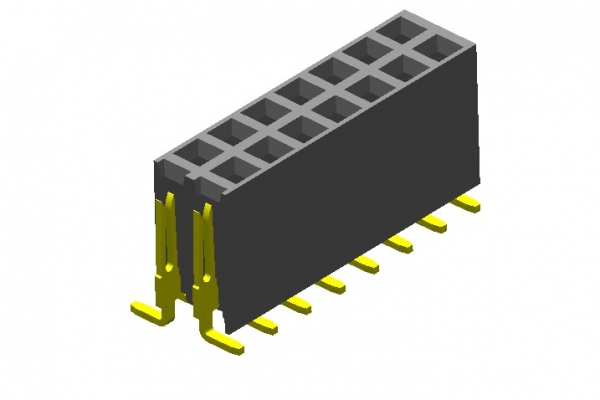

2025-SY272
2.54mm
Female Header Dual Row 06 to 80 Contacts SMT Type Profile: 9.35mm
-
2025-VC272(RC272)
2.54mm
Female Header Dual Row 06 to 64 Contacts Thru-Hole Type Profile: 8.5mm
-
2025-VY272(RY272)
2.54mm
Female Header Dual Row 06 to 80 Contacts Thru-Hole Type Profile: 8.5mm
